FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Shop by vehicle
×
What fits my ride?
Shop By Vehicle
Shop By Vehicle
Shop By Vehicle
×
What fits my ride?

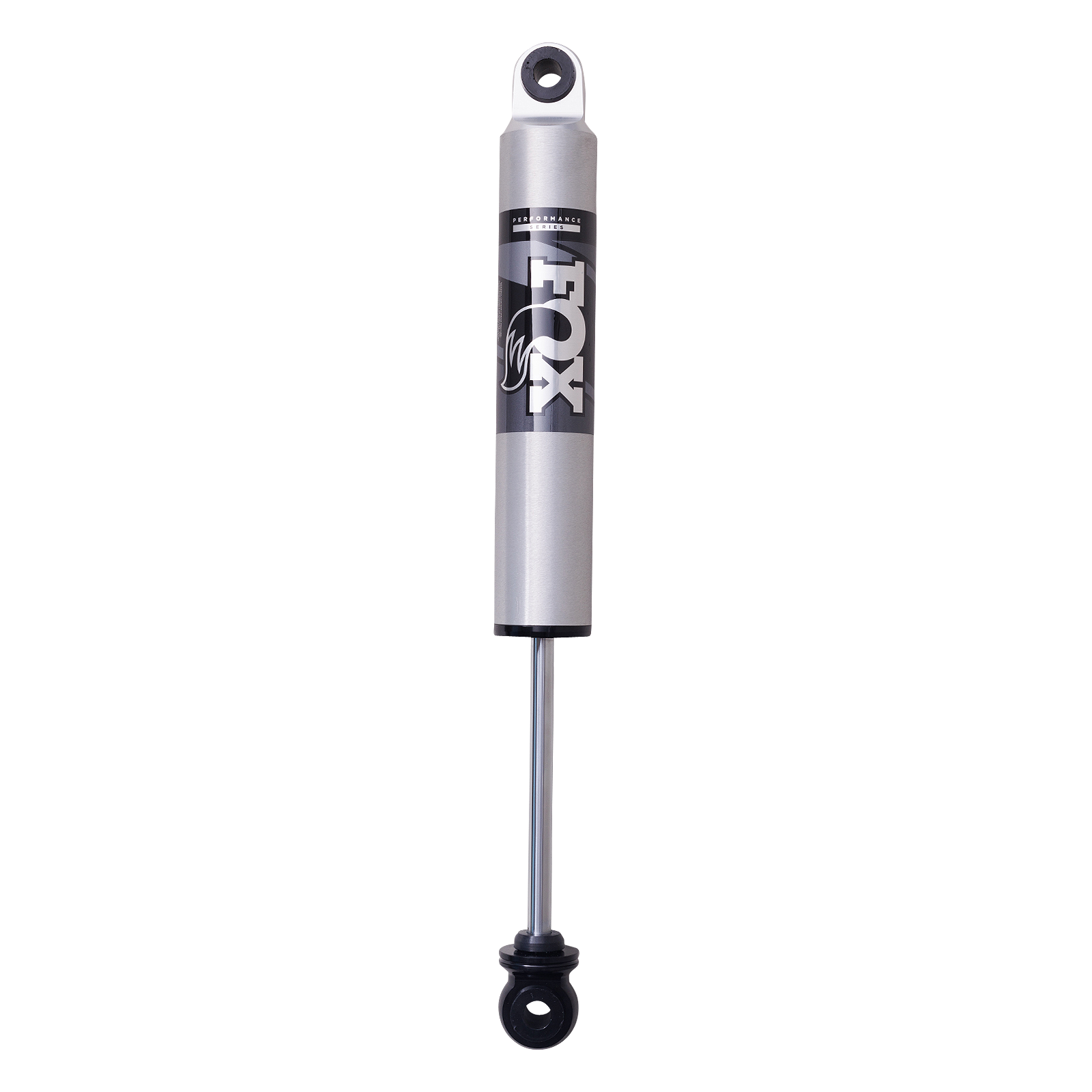

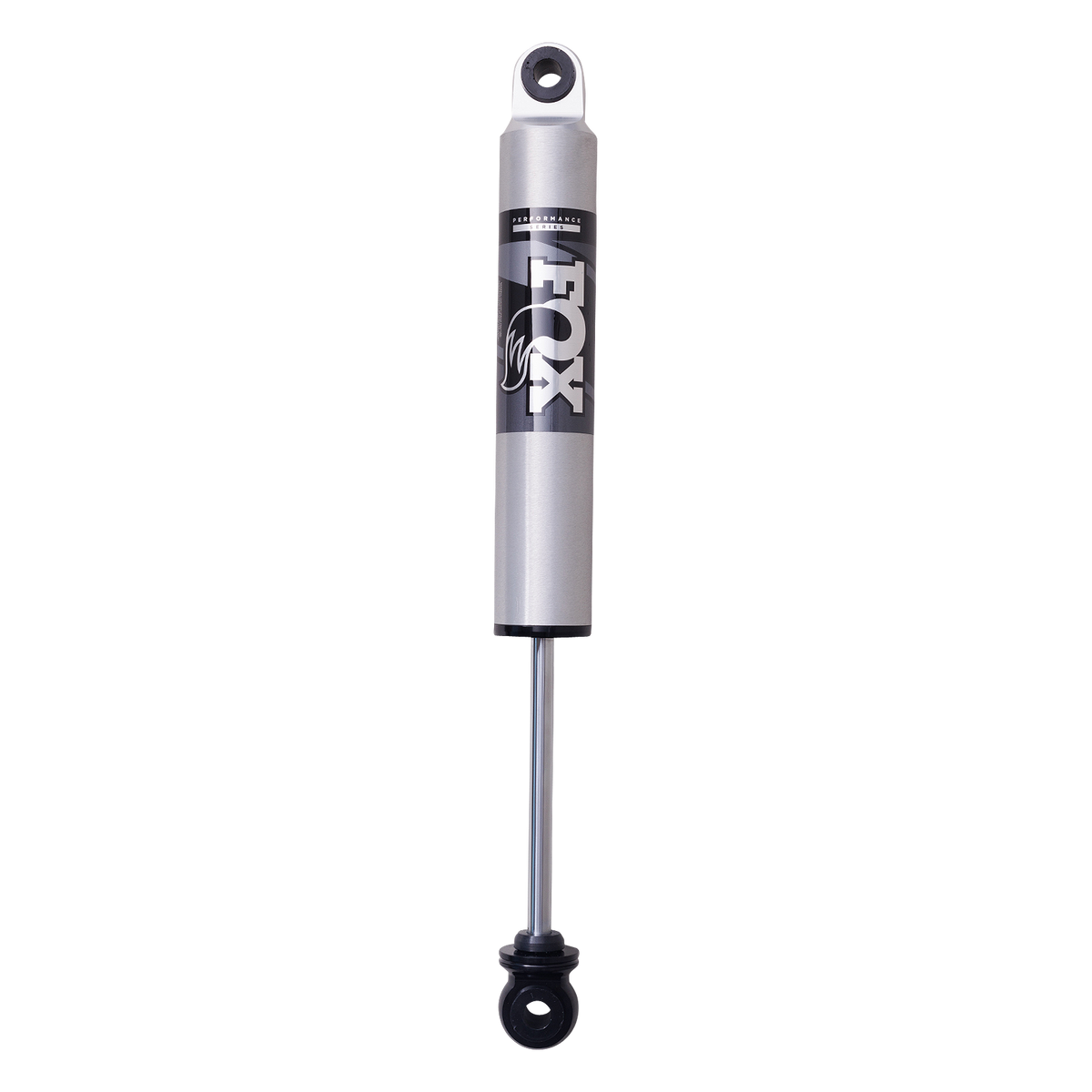

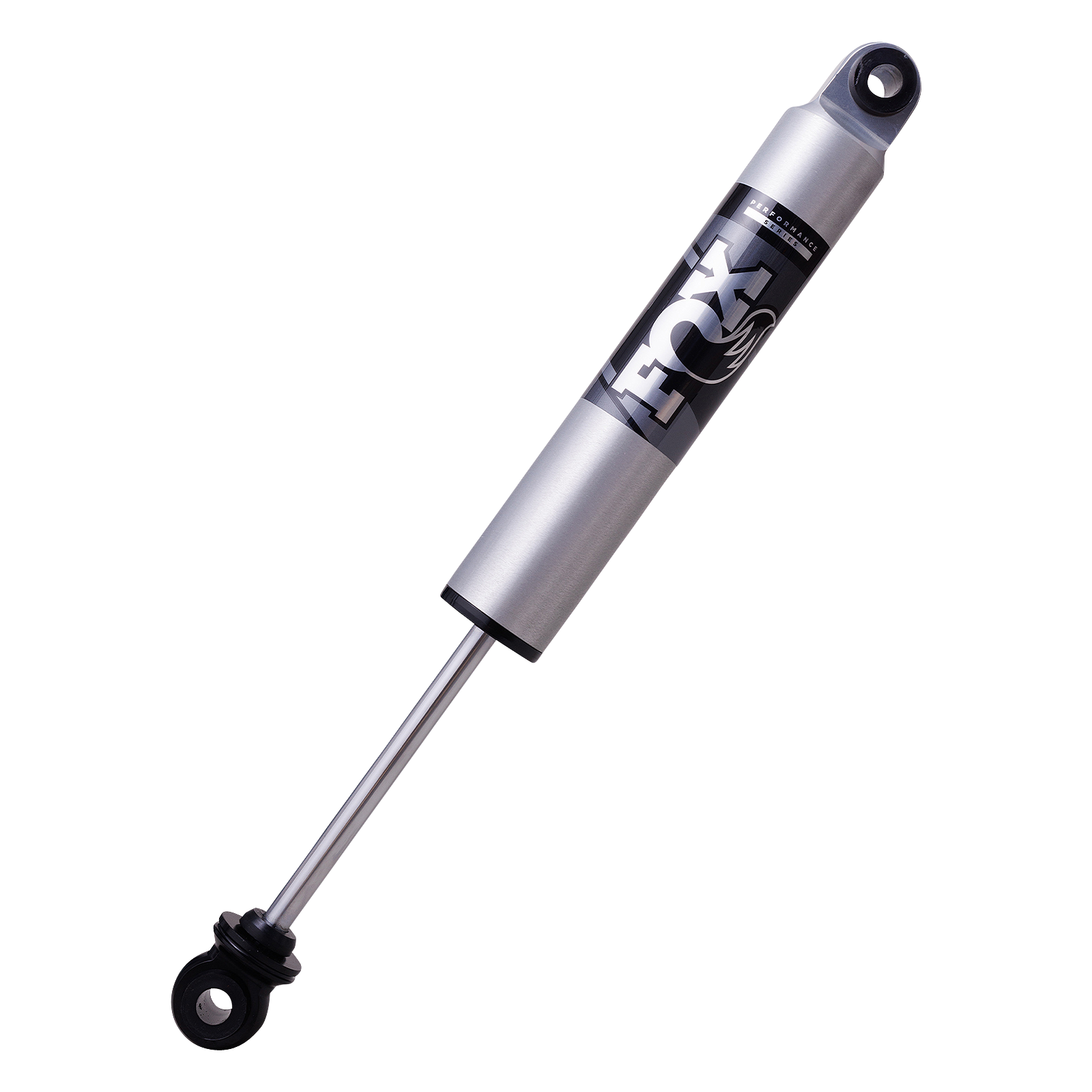

RAM 3500 | 2.5 PERFORMANCE SERIES
Brand:
FOX
SKU:
987-24-027
×
- $346.95
- $346.95
- Unit price
- per
List Price
Your Price
Features & Benefits
2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
- Rear Lift Height : 0-1.5"
- Compressed Length : 17.39
- Extended Length : 26.48
- Position : Rear
- Travel Length : 9.09
2015|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2016|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2023|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2020|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2021|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2014|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2024|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2025|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2017|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2019|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2018|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2022|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||;2026|Ram|3500|*|*|*|*|7556|Shock Absorber|EA|2|||Fits Single and Dual Rear Wheels , Compatible with Air Suspension Equipped Trucks|Rear|30|0"-1.5"||||||||||
